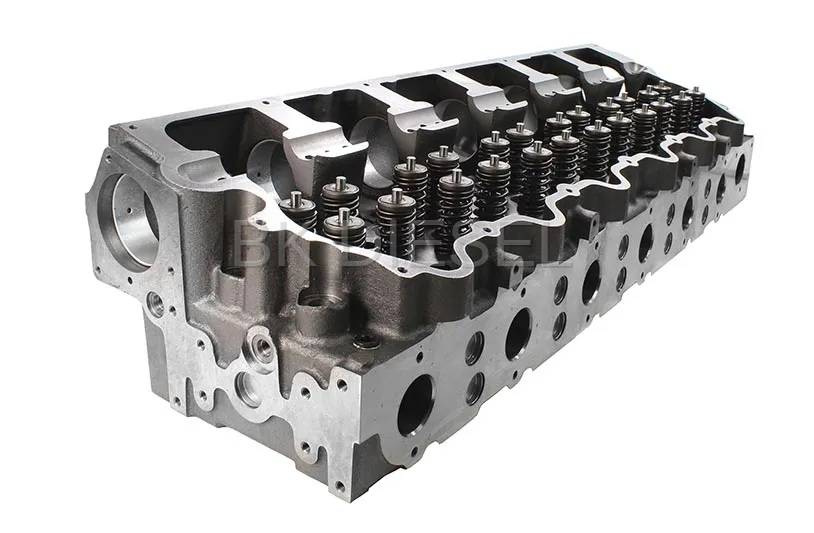

Cylinder Head (New) High Performance C15 Acert

New 223-9250 high performance cylinder head for CAT 3406E/C15/C16/C18 engines.  This head comes fire ringed and complete with upgraded valvetrain and is ready to install.  Designed with hard work in mind, this head guarantees top tier performance and reliability.  Designed to the highest quality, this head meets or exceeds OEM specifications. This cylinder head and valvetrain are all brand new, there is no core charge on this head.  Backed with an industry leading full coverage warranty of one year on the head itself along with $1,500 labor reimbursement in the first six months and up to $3,500 for progressive damage from manufacturing defects you can rest assured we have you covered!

***NOTICE***Due to the size and weight of this item, it will be shipped via truck freight for a flat rate of $250 which will be added upon checkout.  This head will also require a matching fire ring head gasket as the standard head gasket will not seal correctly!

FEATURES:

• Fire ringed for top tier performance to withstand higher cylinder pressure on tuned, high boost, high horsepower engine builds
• Upgraded inconel exhaust AND intake valves made from a superalloy exceeding the strength of normal steel.  This superior material provides resistance to high temperatures and corrosion which significantly extends the valve life and improves overall engine performance
• Arrives loaded with valves, springs, guides, seats, injector cups, and cam bearings installed; no need to purchase and install valvetrain separately
• Valve bridges will be included in a separate box for you to install later
• High strength alloyed cast iron casting machined to oem deck flatness and mating surface spec to meet/exceed oem specs and performance
• Brand new head - no hassle - no core due back!
• Based on the C15 Acert casting.  Earlier non Acert engines use a different casting.  Please verify your fitment prior to ordering!

CROSS REFERENCE PART NUMBERS:

• 0R-7594
• 0R-8628
• 0R-8883
• 0R-9536
• 0R-9537
• 0R7594
• 0R8510
• 0R8628
• 0R8883
• 0R9536
• 0R9537
• 10R-5985
• 10R5985
• 142-7341
• 1427341
• 160-4347
• 1604347
• 161-6191
• 1616191
• 183-5296
• 1835296
• 187-2110
• 1872110
• 223-9250
• 2239250
• 20R-2645
• 20R1955
• 20R2645
• 20R2646
• 20R2647
• 20R2648
• 360435
• C152454324ACCERTO-RINGED
• C152454324ACCERTORINGED
• HBRN223-9250FR
• HBRN2239250FR
• P200010
• TH43-C18
